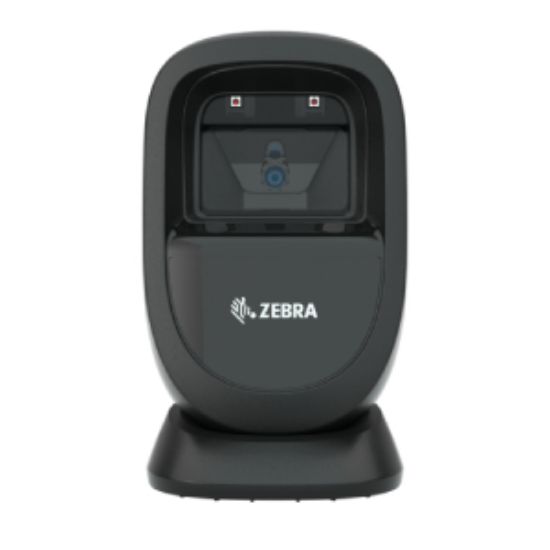

Picture of ZEBRA DS9308 Barcode Scanner Picture of ZEBRA DS9308 Barcode Scanner

ZEBRA DS9308 Barcode Scanner

Be the first to review this product
Compact fixed barcode scanner, plug and play setup, supports screen barcode reading.

The Zebra DS9300 barcode scanner offers fast scanning, multi-language support, USB connectivity, and barcode-based reset, fully compatible with Notepad and Word.



Key Features:

  • Easy deployment and management: Ready to use out of the box with optimized default settings.

  • Backward compatibility: Supports cables and power supplies from the DS9208.

  • Plug-and-Play connectivity: Instantly recognizes all popular interfaces and supports nearly 100 keyboard languages.

  • Multiple mounting options:

    • "Slipper" mount keeps the scanner stable on tables or walls while allowing tilt and handheld use.

    • Locking mount ideal for fixed applications such as self-checkout or mobile loyalty programs.

  • Advanced management technologies (DataCapture DNA):

    • 123Scan tool for easy staging and updating with a single barcode scan.

    • SDK for faster and easier application development.

    • ScanSpeed Analytics for monitoring performance and resolving issues proactively.

    • Remote device management through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), reducing costs and field visits.





Specifications



Physical Characteristics


Dimensions5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight11.2 oz. / 318.0 g
Input Voltage Range4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V)Presentation mode: 335mA
Trigger mode: 350mA
Standby Current (Idle) at Nominal Voltage (5.0V)Presentation mode: 135mA
Trigger mode: 75mA
ColorAlpine White, Midnight Black
Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard SupportSupports over 90 international keyboards
TAA ComplianceTrade Agreement Act Compliant
(optional on select configurations)
Electronic Article SurveillanceCompatible with Checkpoint EAS deactivation system
User IndicatorsGood decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)


Performance Characteristics


Swipe Speed (Presentation)Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Light SourceAiming pattern: circular 617 nm amber LED
Illumination660 nm Hyper Red LED
Imager Field of View52° H x 33° V nominal
Image Sensor1280 x 800 pixels
Minimum Print Contrast15%
Skew Tolerance+/-60°
Pitch Tolerance+/-60°
Roll Tolerance360°



User Environment


Operating Temperature32.0° F to 122.0° F / 0.0° C to 50.0° C
Storage Temperature-40.0° F to 158.0° F / -40.0° C to 70.0° C
Humidity5% to 95% RH, non-condensing
Drop SpecificationDesigned to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Tumble SpecificationDesigned to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental SealingIP52
Electrostatic Discharge (ESD)ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity0 to 10,000 foot-candles/0 to 107,700 Lux
575.00 SAR
increase decrease
Availability: In stock
Free shipping

The Zebra DS9300 barcode scanner offers fast scanning, multi-language support, USB connectivity, and barcode-based reset, fully compatible with Notepad and Word.



Key Features:

  • Easy deployment and management: Ready to use out of the box with optimized default settings.

  • Backward compatibility: Supports cables and power supplies from the DS9208.

  • Plug-and-Play connectivity: Instantly recognizes all popular interfaces and supports nearly 100 keyboard languages.

  • Multiple mounting options:

    • "Slipper" mount keeps the scanner stable on tables or walls while allowing tilt and handheld use.

    • Locking mount ideal for fixed applications such as self-checkout or mobile loyalty programs.

  • Advanced management technologies (DataCapture DNA):

    • 123Scan tool for easy staging and updating with a single barcode scan.

    • SDK for faster and easier application development.

    • ScanSpeed Analytics for monitoring performance and resolving issues proactively.

    • Remote device management through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), reducing costs and field visits.





Specifications



Physical Characteristics


Dimensions5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight11.2 oz. / 318.0 g
Input Voltage Range4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Operating Current at Nominal Voltage (5.0V)Presentation mode: 335mA
Trigger mode: 350mA
Standby Current (Idle) at Nominal Voltage (5.0V)Presentation mode: 135mA
Trigger mode: 75mA
ColorAlpine White, Midnight Black
Supported Host Interfaces

USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485

Keyboard SupportSupports over 90 international keyboards
TAA ComplianceTrade Agreement Act Compliant
(optional on select configurations)
Electronic Article SurveillanceCompatible with Checkpoint EAS deactivation system
User IndicatorsGood decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)


Performance Characteristics


Swipe Speed (Presentation)Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode
Light SourceAiming pattern: circular 617 nm amber LED
Illumination660 nm Hyper Red LED
Imager Field of View52° H x 33° V nominal
Image Sensor1280 x 800 pixels
Minimum Print Contrast15%
Skew Tolerance+/-60°
Pitch Tolerance+/-60°
Roll Tolerance360°



User Environment


Operating Temperature32.0° F to 122.0° F / 0.0° C to 50.0° C
Storage Temperature-40.0° F to 158.0° F / -40.0° C to 70.0° C
Humidity5% to 95% RH, non-condensing
Drop SpecificationDesigned to withstand multiple drops at 5.0 ft. / 1.5 m to concrete
Tumble SpecificationDesigned to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental SealingIP52
Electrostatic Discharge (ESD)ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity0 to 10,000 foot-candles/0 to 107,700 Lux
